FLOW Line

To make machine cleaning extra easy, all elements that need to be removed for daily cleaning are equipped with a blue mark

The rinse module has been further improved to provide an optimum overview and therefore even faster and easier cleaning.

After cleaning, all removed parts must be returned to their correct position. The universal curtains that fit everywhere in the machine make this task
particularly comfortable. The hanging mechanism is extra-easy to handle and makes cleaning even faster. Thanks to the universal curtains, there is no risk of misplacement, and the job is done very quickly.

Our patented wash arm sliders allow you to clean the interior of the wash arms easily and comfortably. While conventional systems required
you to unscrew the end caps of the wash arms first, now a single step is sufficient to get to the wash arm opening.

Combined with AUTO-CLEAN, the wash arm sliders ensure 100 per cent guaranteed hygiene since the wash arms are included in the cleaning. Opening
the wash arm sliders is shown as a prompt on the display and must be acknowledged actively.

Most food residues build up in the machine's entry section. The folding entry section cover allows the machine to be accessed quickly and makes for
straightforward cleaning.

The design of tank sump and tank bottom does not offer soil any chance of depositing. Thus, soil cannot build up in the machine, and perfect hygiene is
permanently guaranteed.

Smart soiling management

Hygiene is the key factor when handling glasses, cutlery and dishes. For this reason, thorough cleaning of the dishwasher at regular intervals is essential. Thanks to the comprehensive cleaning assistance of the AUTO-CLEAN system, the daily cleaning routine of a dishwasher has never been easier or faster.

The sophisticated arrangement of the dedicated cleaning nozzles ensures automatic cleaning of the machine interior and the heat recovery system. To guarantee that the highest hygiene standards aremet, only fresh water is used for cleaning.

By means of the AI-based Performance Package, the system continuously adjusts the parameters for glasses, cutlery and wash ware made of metal. If, for
example, a rack of glasses is placed in the machine, the system increases the fresh water rinse and simultaneously reduces the conveyor speed. No
manual settings are required for this adjustment.

Another benefit: There is no more need for time consuming pre-cleaning of heavily soiled wash ware because the wash and rinse parameters and the
conveyor speed are automatically adjusted to the requirements of the wash ware. This furthermore keeps consumption to a minimum.

When the Performance Plus Package is in place, the machine operates at a higher wash pressure when loaded with cutlery, heavily soiled pots or GN
pans. This ensures the best possible wash result for heavily soiled wash ware and significantly reduces the need for time consuming manual work. Even inexperienced operators make no errors because the system makes all required adjustments.

A conventional drying function blows the warm air onto the wash ware from above. As a result, the air is distributed in an uncontrolled manner. The
all-around drying system not only directs air onto the wash ware from above, but also from the side and from the bottom. This ensures a perfect drying
result even for hollow bodies.

During the washing operation, an even distribution of the wash water on the wash ware is essential to achieve a perfect wash result. Innovative wash arms with special precision nozzles allow the wash water to come into prolonged contact with the wash ware and provide for an improved wash result.

Thanks to their special layout, the HOBART wash nozzles cover a larger area and target their spray more accurately than traditional systems.

Your benefit
The even and compact distribution of the wash water on the wash ware provides for a significantly improved wash result.

Optimum wash water thanks to AI

High levels of soil in the entry section of the machine result in high water and chemical consumption. The AI-based feature ASR ² identifies the degree of
soiling of the wash ware in the machine and adjusts the pumping cycle accordingly.

Coarse soil is automatically pumped out of the pre-wash zone as required and transported to the strainer drawer at the entry section. This guarantees consistently high wash water quality and eliminates the need to change the water between dishwashing shifts.

Soil particles or streaky detergent residues on supposedly clean plates are extremely off-putting. Enjoy guaranteed hygiene at all times with FLOW
Line! After the washing process, the FLOW Line feature applies triple power to ensure residue-free and perfectly clean wash ware: pre-rinse nozzle,
pumped rinse and fresh water rinse.

The new pre-rinse nozzle upstream of the pumped rinse rinses the wash water off the wash ware. Next, the pumped rinse provides the second rinse-off,
followed by a final rinse with fresh water.

For you this means: A perfect result – because the wash ware passes through three stages of rinsing.

A perfectly hygienic wash result takes top priority when washing dishes, glasses or cutlery – the position of the wash ware in the machine is one of the key factors in this regard. Due to its special design, the conveyor belt with tray support ensures that the wash water is brought into optimum contact with the wash ware.

Because
A tray on a conventional conveyor belt can shield a following plate so much that the latter is not sprayed with an adequate amount of detergent solution.

Unsightly stains on glasses, plates or knife blades? Minerals in water often leave visible residues when dishes are dried, thus creating a poor impression.

Put an end to tedious manual polishing
Reliable, stain-free, and hygienic: Continuous treatment with state-of-the-art membrane and filter technology ensures fully demineralised water. This permanently provides for hygienically clean wash ware without any stains. Hygienic risks as a result of manual polishing are prevented in
advance.

By the way
The RO-L reverse osmosis can be set up in a separate housing next to the FLOW Line, or integrated in its housing if a small footprint is of importance.

The modern full-touch control with colour display and intuitive menu navigation ensures fast, uncomplicated operation, even for inexperienced
kitchen staff.

The big 5-inch display with its clearly arranged user interface is compact, convenient and can be read from anywhere in the room. All key information on operating modes, status and temperatures are shown clearly and concisely.

At a glance, the user gets an overview of the machine status and can intervene if necessary.

Intuitively understandable for everybody, the programme progress is displayed in LED bars:
Standby (green)
Washing active (blue)
Error (red)

The display also offers intuitive access to the customer menu and to key data, such as:
The documentation of the maintenance history compliant to DIN
The indication of the water and power consumption
The flexible programming of the autostart programme


The standard USB interface allows you to download data.

For easy data documentation

Convenient uploading of operating and consumption data: Temperature, error messages and the selected programmes must permanently be documented for monitoring purposes. VISIOTRONIC control performs this time-consuming task automatically.

For an easy download of the operating and hygiene parameters, the dishwasher is equipped with an USB-interface, that permits all relevant data items to be saved on an external storage medium.

The HOBART SmartConnect app provides you with a comprehensive overview of the status of your dishwasher – free of charge for 5 years.

Connect, learn, benefit
Based on this data, you can avoid downtime and contact HOBART customer service or an approved service partner. SmartConnect also provides
illustrated instructions for smaller malfunctions so that you can rectify them yourself.

An overview of all functions
Machine status (keep up-to-date regarding the statuses of all your machines)
Machine information (with all important settings and machine information)
Recording of error messages (in addition, you will be notified by email concerning any system errors)
Operating costs calculator (overview of the consumption costs)
Hygiene information (as a log book)
Usage (information about the efficient use of the machine)

Once the machine is switched on, this optional feature checks the main systems of the machine: wash system, drain valves, heaters, and strainer baskets. If there is a malfunction, the display will show the fault and the corrective measures in a clearly understandable manner. Thus, each work day starts smoothly and reliably. Also, the need to call in service technicians is reduced to a minimum.

This control offers all the benefits of the VISIOTRONIC but has a much larger 7 inch display. In size XL, it ensures maximum user comfort.

This feature minimizes energy losses via the warm exhaust air by continuously returning it to the system via a heat recovery system and pre-heating
the fresh water before it runs into the boiler. Savings of up to 10 kW/h are possible in this manner.

Your benefits
Minimised energy loss via exhaust air.
Efficient use of the energy provided.
Your machine’s operating costs are significantly reduced.

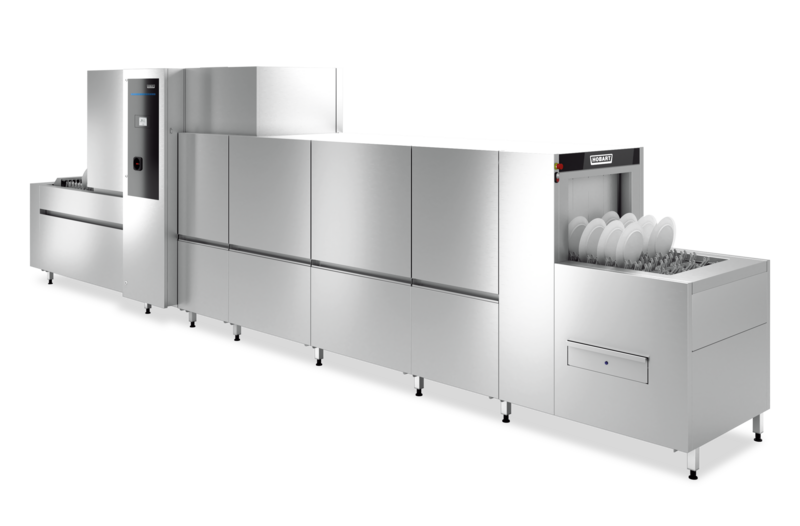

Flight-type dishwashers are designed for the fast cleaning of large quantities of wash ware items. With the innovative FLOW Line Twin dishwashing
organising system, which is unique worldwide, HOBART caters for the practical demands in the food service industry with a tray system solution.

The world-leading, patented FLOW Line Twin dishwashing organising system significantly boosts machine capacity and optimises organisational
processes. Bulky trays run on the separate round belt conveyor at the same time as the rest of the wash ware and are automatically destacked in the
exit section of the machine.

Your benefits:
Up to 30 % faster thanks to the FLOW Line Twin dishwashing organising system.
Reduce operating costs.
Reduce operator burden thanks to automation.

PREMAX inside

Lower chemical consumption means reduced operating costs for you whilst also protecting the environment – the newly developed optional LCI detergent saving system makes this possible.

And this is how it works:
A sensor in the wash tank continuously checks the quality of the wash water and regenerates it as necessary. Depending on the degree of soiling, water from the rinse is briefly fed into the main wash tank as required. The chemical dosing is adjusted to the tank regeneration.

Your benefits at a glance in comparison to the LC detergent saving system:
Reduction of your detergent consumption by up to 30 % compared to LC detergent saving system.
Automatic chemical dosing, precisely as needed.
Optimal wash water quality guarantees best wash result.

The new LOW-FLOW rinse system is supereconomical and ensures perfect wash results: precision nozzles arranged at an inclined position and the fine atomisation of the fresh water in combination with an upstream drip section can reduce water consumption by 40 %.

PREMAX Inside

Efficient energy management
The thermal energy contained in the exhaust air is completely regenerated by means of stateof-the-art technology and returned to the wash process and now also to the drying process. This not only helps you to reduce the energy consumption of your machine but also to save on the related operating costs.

By the way
As a result of constantly low exhaust air temperatures of 17 °C, the room climate is improved in compliance with VDI 2052.
