MCW PALLET CLEANING SYSTEM
OPTIMUM CLEANING PERFORMANCE

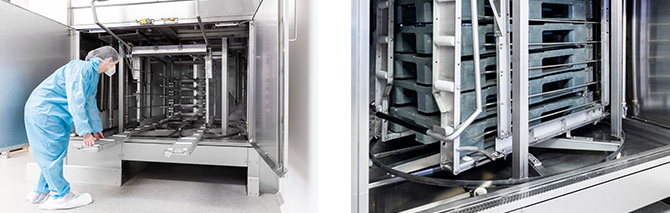

With the HOBART pallet cleaning system, you can clean your pallets quickly and easily in an automatic solution. Using a platform stacker or forklift truck allows for ergonomic loading. The pallets are lifted onto the turntable with the help of the lifting system and separated. They are then cleaned and dried automatically and the pallet rotating mechanism guarantees an optimum cleaning and drying result.
Your benefits at a glance:
- High cleaning capacity
- Low water consumption
- Ergonomic pallet loading and unloading
- Flexibility thanks to front-loading or pass-through option
- Simple servicing and maintenance
- Reduced exhaust heat as a result of full machine insulation
- Clear control system
- Low staffing needs due to simple 1-person operating concept
DRYING AND BLOW-DRYING

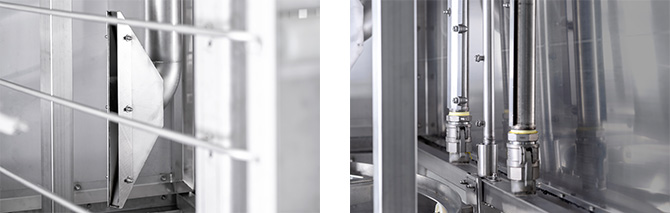

Efficient blowing and drying are optimised for the items being washed and, in combination with the rotational movement, ensure perfect drying results.
PALLET CLEANING SYSTEM
The HOBART pallet cleaning system guarantees reliable, optimum cleaning results. Thanks to the pallet rotation mechanism and individual adjustment of the washing and rinsing jets to line up with the item being washed, the entire pallet is reliably reached and cleaned.
CUSTOMER-ORIENTED CLEANING PROCESSES
The cleaning parameters are individually adjusted to the items being washed and their level of soiling, ensuring that the cleaning process delivers optimum results.
LOWRUNNING COSTS
The special washing and cleaning systems reduce fresh water consumption to a minimum, lowering running costs.

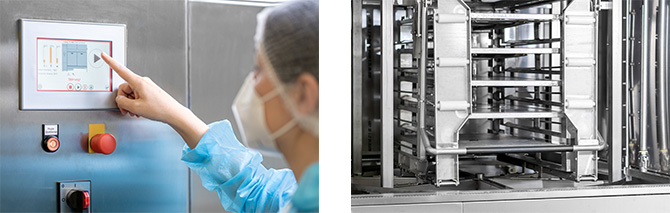

PROTRONIC XL
With its clearly structured, colour touch screen, the PROTRONIC XL control system offers an innovative operating concept that provides important information about the machine and cleaning process:
- Large, 7-inch touch screen
- Visualisation of important machine information and error codes
- Range of different cleaning programmes
- Message management
Access to training videos and operating instructions
FLEXIBILITY
Because the cleaning trolleys can be adapted to the items being washed, other objects such as small load carriers or containers can also be cleaned in addition to pallets.
EASY MAINTENANCE
The easily accessible components and service hatch make servicing and maintenance work easier.
SMALL FOOTPRINT
For a space-saving solution, the system can be set up on an area of approx. 2.15 x 2.8 metres.

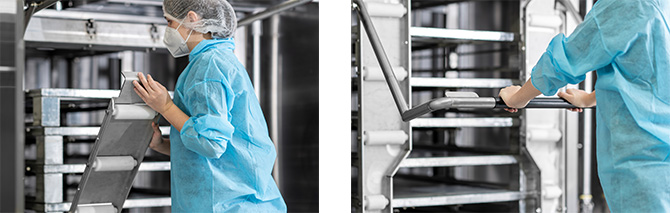

PALLET LIFTING SYSTEM
In the pallet lifting system, the stacked pallets are lifted prior to cleaning to minimise shadow zones and contact surfaces for an optimum cleaning and drying result. The pallet lifting system works easily and smoothly when the handle is pressed down. A coupling and stopper mechanism secures the pallets in position during cleaning.
HANDLING
The system can be used as either a front-loading or pass-through system. With the pass-through variant, separation by clean and dirty sides can take place.

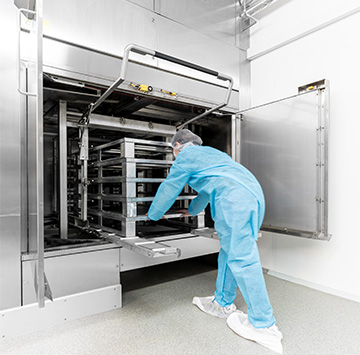

ERGONOMICAL LOADING

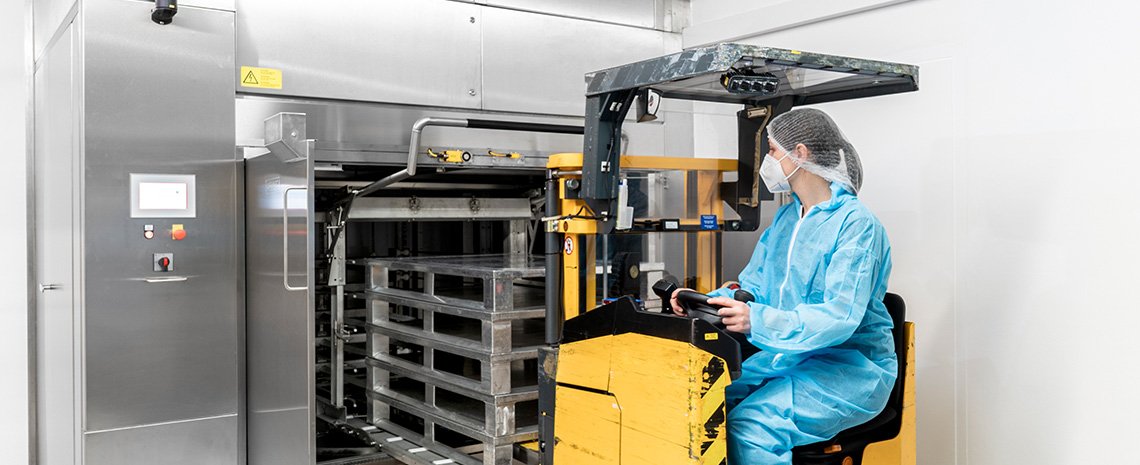

With the help of a forklift or platform stacker, items can be loaded and unloaded using the machine's sliding tracks. The base of the system is accessible, ensuring easy loading and unloading with a platform stacker. Pallets can be loaded into the system in a stack. The pallet lifting system lifts them up.

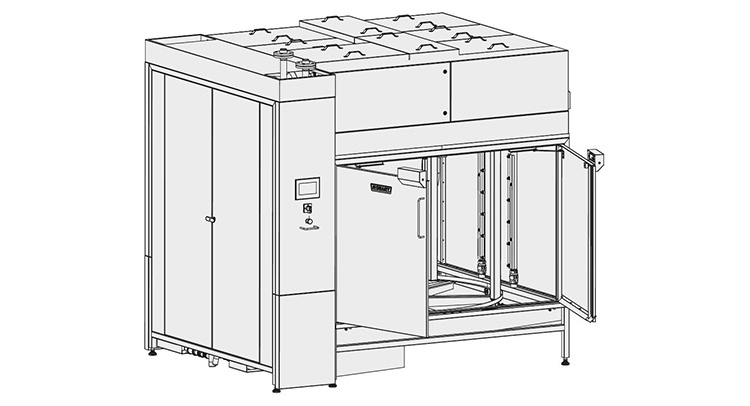

Zeichnung
Technical data
| MODEL | MCW |
| Surface area | 2,150 x 2,750 mm |
| Height | 2,450 mm |
| Capacity | Up to 12 cycles/h |
| Throughput rate | Up to 60 pallets/h |
| Number of pallets per wash cycle | 5 |
| Pallet size | Up to 1,200 x 1,000 mm |
| Material | Stainless steel |
| Water consumption | 100 – 200 l/h |
| Connected value | approx. 80 kW |
| Type of heating | Electric, steam, hot water |
| Areas of application | Automotive industry, pharmaceuticals industry |
