High level of economic efficiency - Warewash systems
Do you want to reduce water, energy and cleaning agent costs? Our innovative machines offer you lots of ways to save money, combining a high level of economic efficiency with top quality. Compared to traditional machines, our dishwasher solutions provide a wide variety of technical innovations enhancing your warewash system's performance and efficiency, thus allowing you to reduce operating costs significantly.
Efficiency concept
clever technology paired with efficient use
Saving on operating costs made easy: The innovative efficiency concept lowers your costs, avoids energy losses and reduces the exhaust air volume. Eliminates the need for direct connection to an on-site exhaust hood.
CLEANING MANAGEMENT
A good cleaning result depends on many parameters. The innovative cleaning management optimally combines mechanics, circulation output, water distribution, chemical agents, time, and contact area. As a result, this innovative cleaning management achieves best results and at the same time provides for
- additional energy savings,
- reduced connected loads
- reduced heat losses.
Exhaust air management
As the new cleaning management reduces water circulation, this has an immediate effect on the formation of waste steam.
BECAUSE: Less waste steam means less exhaust air. The reduced exhaust air volume eliminates the need for direct connection to an on-site ventilation system.

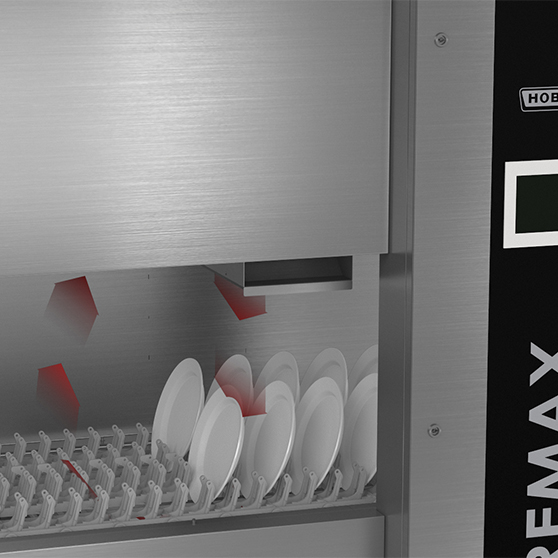

Drying management
The drying zone has been optimised for direct guidance of the air flows and a more efficient use of energy. As a result, the drying air is not indiscriminately blown out, but is systematically used where it is needed.

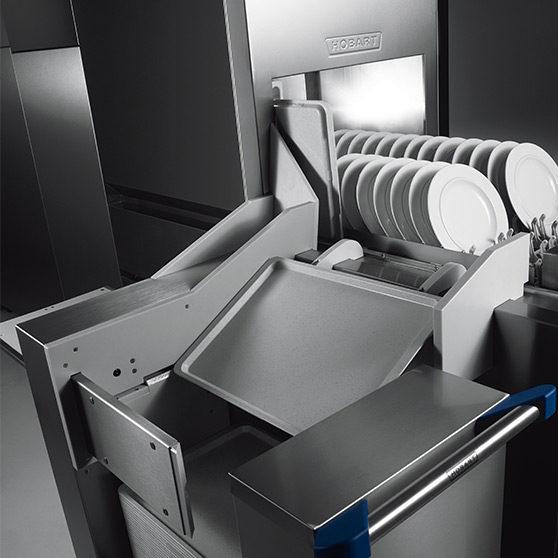

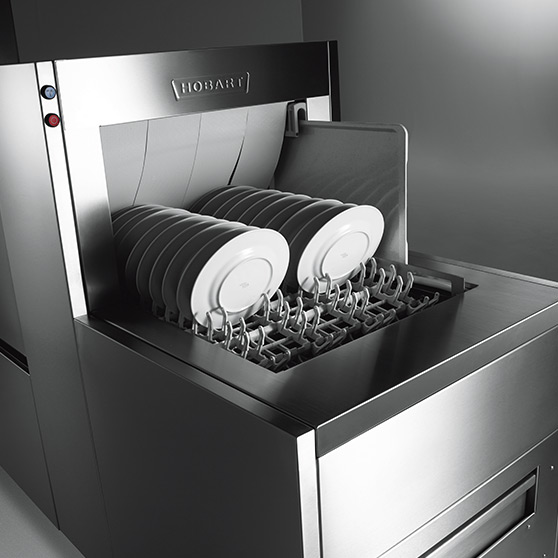

FLOW Line Twin
High efficiency and optimal organisation
Flight-type dishwashers are designed for the fast cleaning of large quantities of wash ware items. With the innovative FLOW Line Twin dishwashing organising system, which is unique worldwide, HOBART caters for the practical demands in the food service industry with a tray system solution.
The patented FLOW Line Twin dishwashing organising system significantly boosts machine capacity and optimises organisational processes. Bulky trays run on the separate round belt conveyor at the same time as the rest of the wash ware and are automatically destacked in the exit section of the machine.
Your benefits
- Be faster thanks to the FLOW Line Twin dishwashing organising system.
- Reduce operating costs.
- Reduce operator burden thanks to automation.
50PERCENT fresh water rinse
Optimum rinsing of cleaning chemicals
Save water – enabled by the 50PERCENT fresh water rinse: The fresh water rinse removes the cleaning chemicals. Water distribution is a crucial factor to consider in regard to the volume of water consumption.
The 50PERCENT fresh water rinse uses special precision nozzles. These disperse the rinse water like a fine curtain and thus form a water film on the wash ware. Because of the optimised water distribution, this micro-thin film is sufficient to rinse off the wash water. In addition to conventional rinsing, the 50PERCENT fresh water rinse also sprays the wash ware with lateral spray arms.
Your benefits at a glance
- Reduce fresh water volume.
- Significantly reduce rinse aid and energy requirements.
- Optimised wash water rinsing off wash ware.

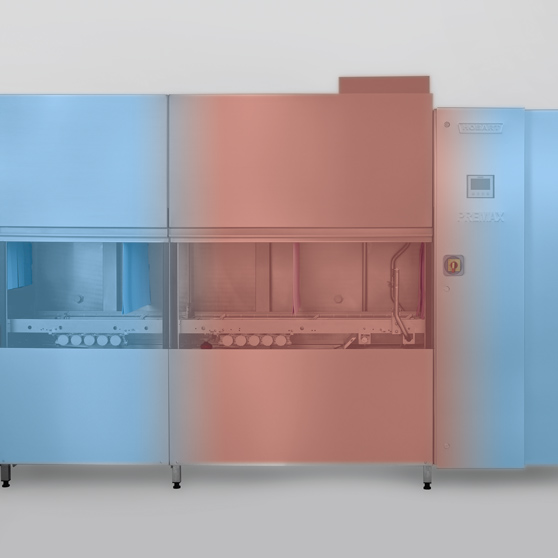

TOP-TEMP energy management
Prevents energy losses before they arise
Reduce energy loss in your dishwashing system with energy management as standard.
In this system, the hot machine zones are enclosed by the cooler zones such as pre-wash and drying. The resulting temperature curtain ensures that air exchange can only take place within the machine. The machines of the PREMAX line are characterised by a special temperature profile and exploit this principle to optimum effect.
CLIMATE heat recovery
Smart use of exhaust air
This feature minimizes energy losses via the warm exhaust air by continuously returning it to the system via a heat recovery system and pre-heating the fresh water before it runs into the boiler. Savings of up to 10 kWh* are possible with our FLOW Line in this manner.
Your benefits
- Minimised energy loss via exhaust air.
- Efficient use of the energy provided.
- Your machine’s operating costs are significantly reduced.
*Values depend on machine configuration and are compared to a HOBART dishwasher without CLIMATE heat recovery.
CLIMATE-PRO heat pump
Innovation meets economy and energy efficiency.
You can save up to 20 kWh* with the CLIMATE-PRO heat pump in our FLOW Line.
Efficient energy management
The thermal energy contained in the exhaust air is completely regenerated by means of stateof- the-art technology and returned to the wash process and now also to the drying process. This not only helps you to reduce the energy consumption of your machine but also to save on the related operating costs.
By the way
As a result of constantly low exhaust air temperatures of 17 °C, the room climate is improved in compliance with VDI 2052.
*Values depend on machine configuration and are compared to a HOBART dishwasher without CLIMATE-PRO heat pump.
LC detergent saving system
Reduced detergent consumption –easy on the wallet
The total fresh water volume is divided up, and the LC detergent saving system directs just 75 l or 105 l of fresh water into the wash tank for regeneration of the wash water, depending on the machine type. Only this low quantity is directed into the main wash and mixed with detergent. Detergent dosing depends on the fresh water volume, which means you save on a corresponding amount of chemicals. The remaining water is directly pumped into the pre-wash tank via a bypass line.
The benefit
This system reduces the detergent consumption.
LCI detergent saving system
Cleaning chemicals: use only as much as you need
Lower chemical consumption means reduced operating costs for you whilst also protecting the environment – the developed optional LCI detergent saving system makes this possible.
And this is how it works:
A sensor in the wash tank continuously checks the quality of the wash water and regenerates it as necessary. Depending on the degree of soiling, water from the rinse is briefly fed into the main wash tank as required. The chemical dosing is adjusted to the tank regeneration.
Your benefits at a glance in comparison to the LC detergent saving system
- Reduction of your detergent consumption by up to 30 % compared to LC detergent saving system.
- Automatic chemical dosing, precisely as needed.
- Optimal water quality for clean wash results.
LOW-FLOW rinse system
Particularly effective water saving
The LOW-FLOW rinse system is super-economical and ensures optimal wash results: precision nozzles arranged at an inclined position and the fine automisation of the fresh water in combination with an upstream drip section the FLOW Line can reduce the water consumption by up to 40 %*.
*Value depends on machine configuration and compared to a HOBART dishwasher without LOW-FLOW rinse system.

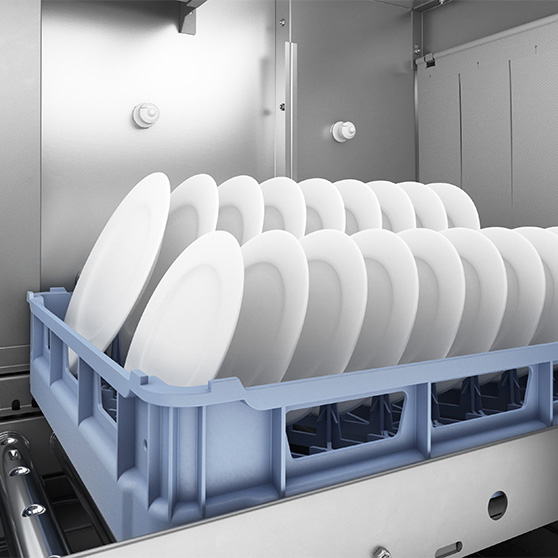

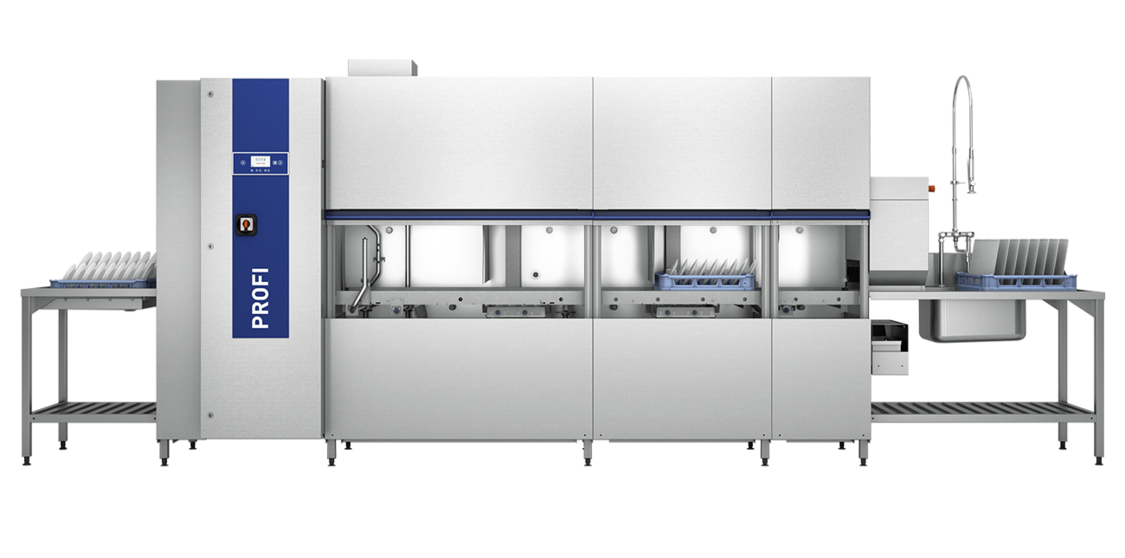

RACK-FLOW sensor system
One-man operation made easy
Operating a warewashing system with one person only used to take plenty of time. In the case of a short unloading table, the operator has to walk from the intake to the end of the machine to unload the clean wash ware every few racks. This means constant moving between entry and exit of the machine and necessary hand washing due to hygiene safty rules.
With conventional washing processes, the foremost rack actuates the mechanical limit switch at the end of the unloading table after a short time, which interrupts the washing process until the rack has been emptied. The other racks remain in the dishwasher and are washed only once the rack is empty.
HOBART HAS A FAST AND EFFICIENT SOLUTION
The patented RACK-FLOW sensor system helps you to get the most out of your dishwasher. Intelligent control technology allows for loadingthe machine over its entire length and using itwithout long interruptions. Thus, you can washdouble the number of racks than before.
How does that work?
Our intelligent RACK-FLOW sensor system prevents the first rack from moving all the way to the limit switch but stops it instead at the end of drying. During this time, the operator can continue loading racks into the dishwasher, thus using the entire machine length.
For you this means
With the RACK-FLOW sensor system, you save valuable time, optimise the processes in the scullery, and improve your efficiency.
PREMAX inside
EVEN MORE EFFICIENCY AND SAVINGS
It's the ongoing operating costs of a dishwasher that make the difference!
The optional PREMAX inside features make the FLOW Line our most economical flight-type dishwasher on the market.
The three PREMAX inside features CLIMATE-PRO heat pump, LOW-FLOW rinse system, or the LCI detergent saving system provide significant additional savings of energy, water, and chemicals while ensuring premium wash results.
