PLASTIC RACKS FOR PLATES, TRAYS, CUPS, UNIVERSAL
PRODUCT ADVANTAGES - PLASTIC RACKS
- Perfect system: perfectly sized racks reduce danger of broken glasses
- Square and rectangular compartments: with or without slope: the glasses always have a safe stand and are optimum protected
- Slope: for full drain of water from moulded glass bottoms
- Superior water penetration: all sides are open and the water reaches the wash ware with its full power
- Less space required: rack heights adapted to glasses
- High capacity: from 9 to 49 glasses for high wash performance
- Stackable: high storage capacity with minimised space requirement
- Self cleaning: rack cleans itself automatically during wash cycle. No edges or dirt traps

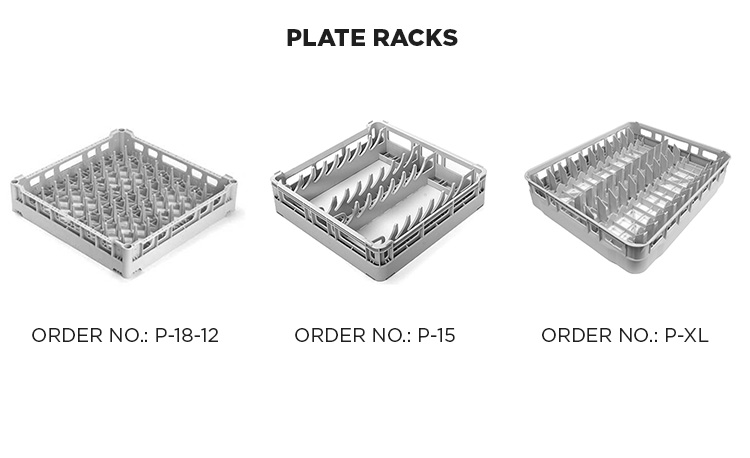

Plate racks
| ORDER NO. | DESCRIPTION |
| P-18-12 | Plate rack 500 x 500 mm 9 spaces, full peg for 18 flat or 12 deep plates up to 260 mm Ø or 9 trays up to 470 mm Ø |
| P-15 | Plate rack 500 x 500 mm for 15 plates from 180 mm to 320 mm Ø |
| P-XL | Plate rack 600 x 500 mm, for 24 plates up to 240 mm Ø or 22 large plates (285 mm Ø), height 11 cm |

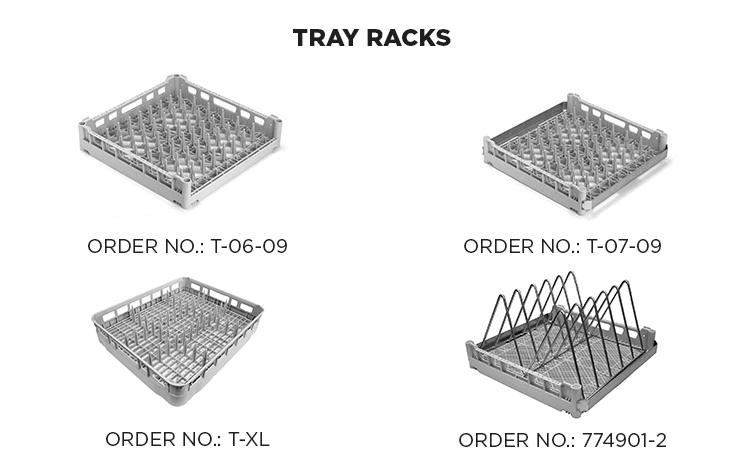

Tray racks
| ORDER NO. | DESCRIPTION |
| T-06-09 | Tray rack 500 x 500 mm for 9 GN- or EN-trays, open on one side (not suitable for hood-type dishwashers in corner operation) |
| T-07-09 | Tray rack 500 x 500 mm for 9 GN-trays, open on two sides with stainless steal guide (also suitable for hood-type dishwashers in corner operation) |
| T-XL | Tray rack 600 x 500 mm, for 10 GN-trays or 12 trays up to 470 mm length, height 11 cm |
| 774901-2 | Tray rack 540 x 500 mm stainless steel, with insert (250 mm high) for 5 isolating trays up to GN-size and up to max. 70 mm thickness / tray (not useful for heavy soiled trays) |

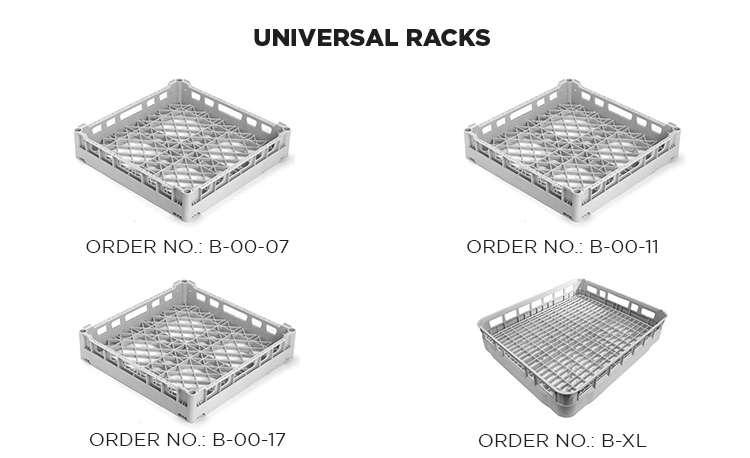

Universal racks
| ORDER NO. | DESCRIPTION |
| B-00-07 | Universal flat rack 500 x 500 mm with wide mesh bottom (for example for cutlery baskets for cutlery in upright position) height 7 cm |
| B-00-11 | Universal flat rack 500 x 500 mm with wide mesh bottom (for example for cutlery baskets for cutlery in upright position) height 11 cm |
| B-00-17 | Universal flat rack 500 x 500 mm with wide mesh bottom (for example for cutlery baskets for cutlery in upright position) height 16 cm |
| B-XL | Universal flat rack 600 x 500 mm, with wide mesh bottom (for example for cutlery baskets for cutlery in upright position), height 11 cm |

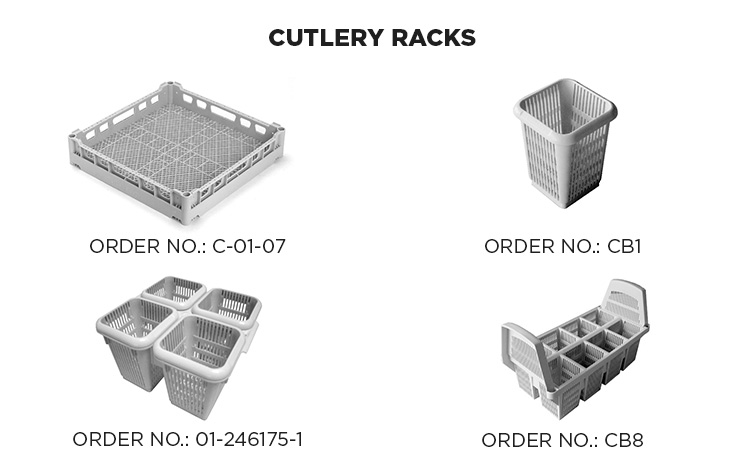

Cutlery racks
| ORDER NO. | DESCRIPTION |
| C-01-07 | Cutlery rack 500 x 500 mm with narrow mesh bottom for cutlery in horizontal position, also usable as universal rack |
| CB1 | Plastic cutlery box 90 x 90 mm, for appr. 20 pieces of cutlery |
| 01-246175-1 | Plastic cutlery rack 230 x 230 mm with integral handles and 4 compartements, for appr. 80 pieces (4 x 20) |
| CB8 | Plastic cutlery rack 460 x 230 mm with handles and 8 compartments for appr. 160 pieces (8 x 20) |
