HOBART

Bottle washing system

Hygiene and flexibility are two of the most important factors for anyone who has to wash reusable bottles and decanters, be it a catering establishment, hotel or member of the healthcare sector. The retrofittable bottle washing system by HOBART delivers both.
Simply clean.

    YOUR BENEFITS AT A GLANCE

    • HYGIENE SAFETY: Thanks to the special spray attachment, water and detergent reach all the way into the body of the bottle, ensuring hygiene standards that are in line with the requirements of DIN SPEC 10534.
    • MAXIMUM CAPACITY: The HOBART bottle rack can wash 12 bottles in a variety of sizes in just a single wash cycle.
    • FLEXIBILITY: Be it reusable bottles or any other form of wash ware. HOBART undercounter dishwashers can be modified in just a single step by replacing the standard wash and rinse arm with the spray attachment.
    • EASY HANDLING: The bottle washing system is very easy to install and remove. No tools are required. The new "Bottles" wash programme can be selected intuitively on the display.

    Bottle washing system

    ORDER NO. DESCRIPTION

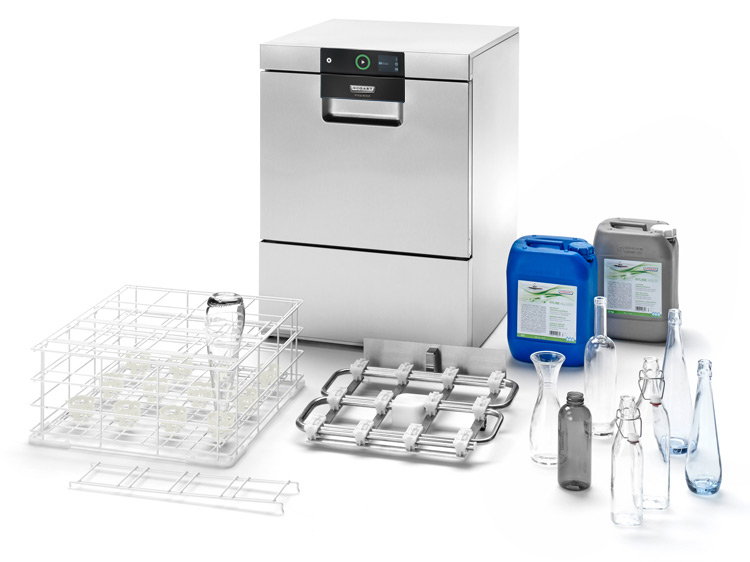

    04-006410-001 Complete bottle washing system. Consisting of bottle rack for 12 bottles (04-006443-001) including wire attachment for smaller bottles and spray attachment with wash and rinse system for the wash chamber.
    04-006443-001 Bottle rack 500 x 500 mm for bottle washing system: Provides space for 12 bottles. Min. 16 mm bottle neck and max. 113 mm bottle diameter; Max. bottle height: FP/GP: 330 mm, FX/GX: 370 mm, GXC: 250 mm, GPC: 210 mm

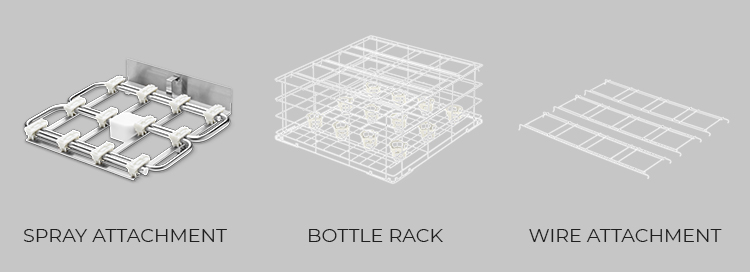

    • SPRAY ATTACHMENT: The spray attachment developed for washing bottles can also be retrofitted for use in undercounter dishwashers. Funnel-shaped spray nozzles squirt the water directly inside the bottle. A clip-slide system means that the spray attachment can be cleaned without needing any tools.

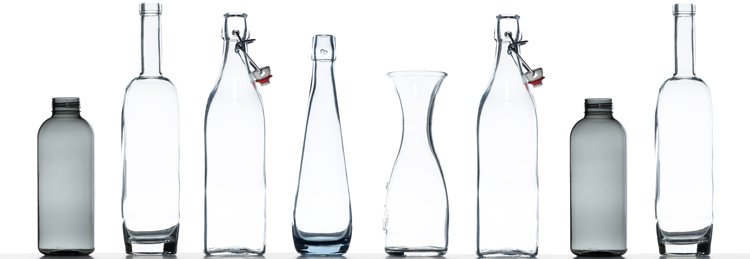

    • BOTTLE RACK: The special wire rack is suitable for bottles in a wide array of sizes, from drink bottles to lab bottles.
    • WIRE ATTACHMENT: The additional wire attachment ensures that even bottles with a small diameter will stay in the correct position.



    TECHNICAL DATA

    MACHINE TYPES GP / GPC / GX / GXC / FP / FX (not FXL) / CARE
    BOTTLE CAPACITY Max. 12 bottles
    DIAMETER OF BOTTLE OPENING Min. Ø 16 mm
    DIAMETER OF BOTTLE EXTERIOR Max. Ø 113 mm
    BOTTLE HEIGHT FX / GX: 370 mm, FP / GP / CARE: 330 mm, GXC: 250 mm, GPC: 210 mm
